waterfall

endoscopic irrigation pump



waterfall
Irrigation of the operating site is a very important element of any endoscopic procudure.

  • assures good visibility and clean operating site
  • reduces tissue adhesion on endoscopic instruments
  • irrigation using saline solution increases tissue conductivity – faster electrosurgical effects
  • quick and easy fluid flow adjustment from the pump control panel
  • microprocessor control of fluid flow
  • low-noise, does not cause nuisance in the procedure room

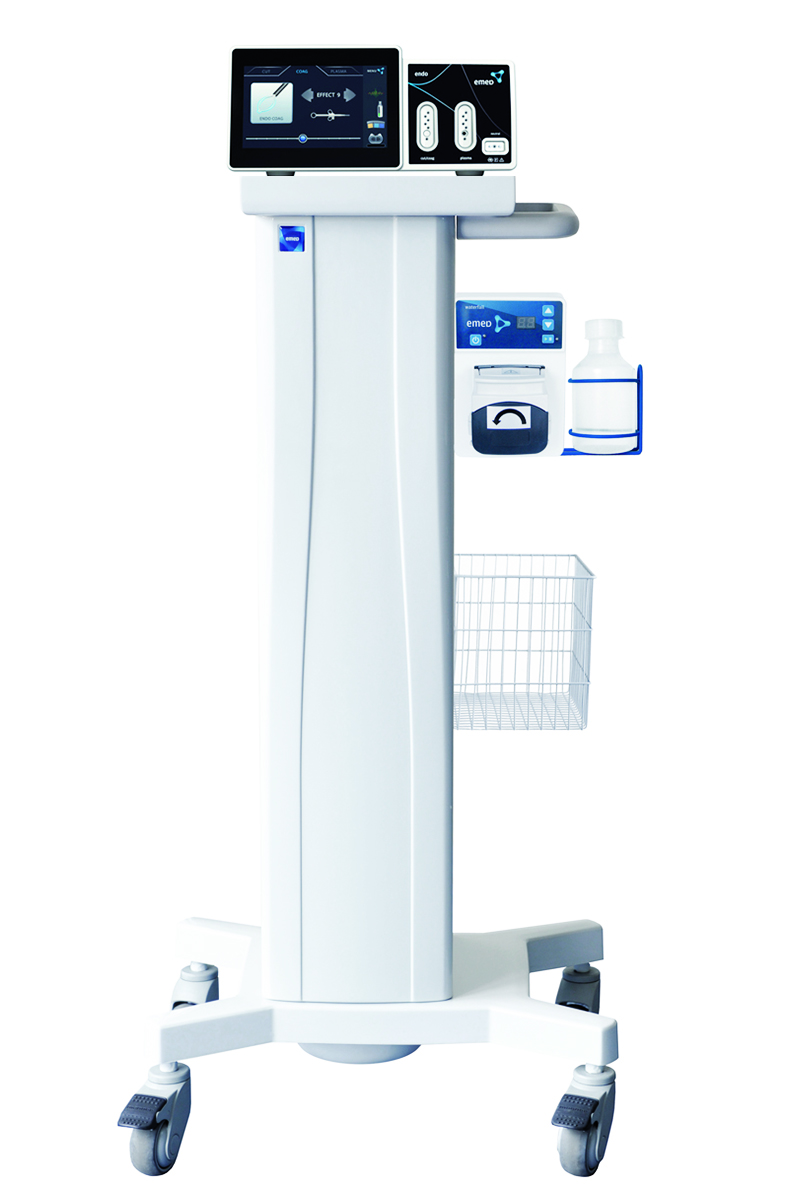

  • small size and possibility of mounting of the device on the SpectrumLine and TinyLinet trolleys gives easy access to the pump during the procedure
Waterfall In endoscopic procedures, the operation site may be contaminated with chime or blood residue in the gastrointestinal tract.

The waterfall endoscopic irrigation pump was designed to ensure full comfort and safety during surgeries.

The pump makes it possible to quickly rinse the gastrointestinal tract using physiological saline directly through the endoscopes rinsing opening or by using endoscopic instruments.

technical data


  • nominal voltage : 220-240V AC
  • power supply frequency : 50/60 Hz
  • rated power : 40VA
  • pump type : 3-roller peristaltic

flow parameters


  • drain Ø 1.6 mm : up to 135 ml/min
  • drain Ø 3.2 mm : up to 410 ml/min
  • drain Ø 6.4 mm : up to 1900 ml/min

download

Accessories & instruments


Irrigation Tubing-EMED Pump/Pentax-Fujifilm GI Endoscopes (with one way valve)

PLO000100
Single use one-way water jet connector for Fujifilm endoscope


100100
One-pedal footswitch, cable 5m, 6-pin plug


100-301
